3D Laser Scanning for Elevator Shaft Geometry Verification
As-built laser scanning and point cloud analysis to identify construction deviations preventing elevator installation.
CASE STUDY · REALITY CAPTURE · CONSTRUCTION
PROJECT OVERVIEW
A newly constructed residential building in Budapest encountered a critical problem during elevator installation: the completed shaft geometry differed from the design, leaving insufficient clearance for the elevator system to be installed.
The shaft had been constructed by two consecutive contractors, and deviations introduced during the construction process resulted in a slight geometric twist through the structure.
A complete three-dimensional survey was required to determine the actual as-built geometry, locate and quantify the deviations, and provide reliable dimensional information for corrective construction work.
Using terrestrial laser scanning and point cloud analysis, the physical installation problem was converted into measurable spatial evidence that could be used to determine where the structure required modification.
PROJECT TYPE: As-built Geometry Verification
LOCATION: Budapest, Hungary
SECTOR: Residential Construction
MY ROLE: Field Survey · Laser Scanning · Point Cloud Registration · Data Processing · Deviation Analysis · Technical Documentation
TECHNOLOGY: RIEGL VZ-400i · RiSCAN PRO
OUTPUT: Registered Point Cloud · Geometric Deviation Report
APPLICATION: As-built Verification · Construction QA
COLLABORATION: Connect-King Kft
THE CHALLENGE
During the installation phase, it became apparent that the elevator system could not be installed within the completed shaft.
Two contractors had worked sequentially on the structure, and the resulting as-built geometry deviated from the original design. The shaft showed a slight geometric twist, creating insufficient clearance in critical areas.
The key questions were therefore:
Where did the completed shaft deviate from the design geometry?
How significant were the deviations?
Which areas were preventing the elevator installation?
Where would corrective construction work be required?
Conventional isolated measurements would not provide a sufficiently complete representation of the shaft geometry. A comprehensive three-dimensional survey was required.
MY ROLE
I was responsible for the complete reality capture and analysis workflow, from field acquisition through to the final technical outputs.
My work included terrestrial laser scanning of the elevator shaft, point cloud registration and processing, geometric analysis of the completed structure, evaluation of dimensional deviations and preparation of the final technical documentation.
The objective was not simply to document the shaft, but to transform the captured spatial data into actionable engineering information that could support corrective construction work.
The final deliverables consisted of the registered point cloud dataset and a geometric deviation report showing the actual differences within the completed shaft.
TECHNICAL APROACH
Terrestrial laser scanning was selected to capture the as-built geometry of the shaft as a complete three-dimensional dataset.

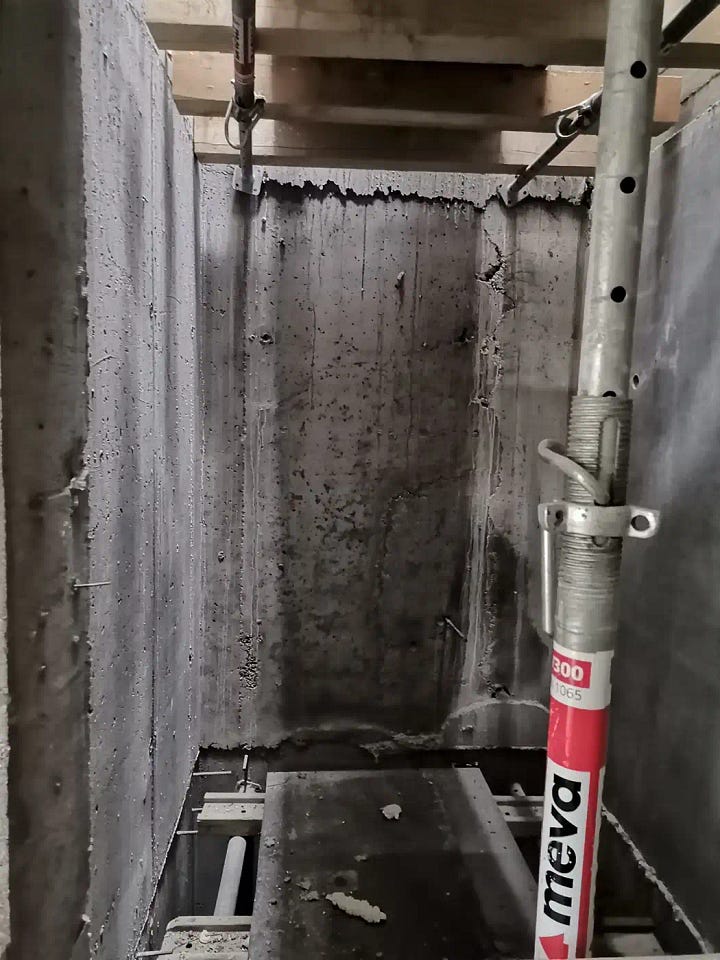

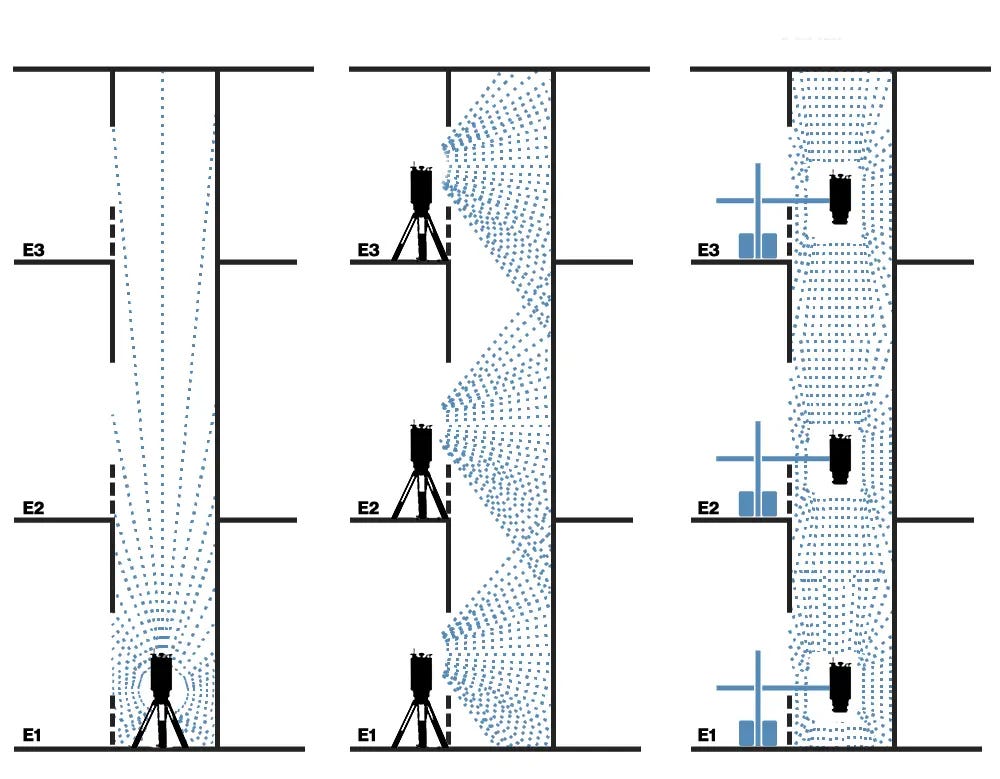

The confined and vertically extended environment required multiple scanning positions to achieve sufficient coverage of the structural surfaces and minimise areas of missing data.
The survey was performed using a RIEGL VZ-400i terrestrial laser scanner. Individual scans were subsequently registered and processed in RiSCAN PRO to create a unified spatial representation of the completed shaft.
The resulting registered point cloud provided the geometric basis for detailed verification and deviation analysis.
POINT CLOUD ANALYSIS
The registered point cloud enabled the completed shaft to be analysed as a continuous three-dimensional structure rather than as a series of isolated measurements.
This made it possible to identify the geometric relationship between different sections of the shaft and determine where the as-built structure was restricting the space required for elevator installation.

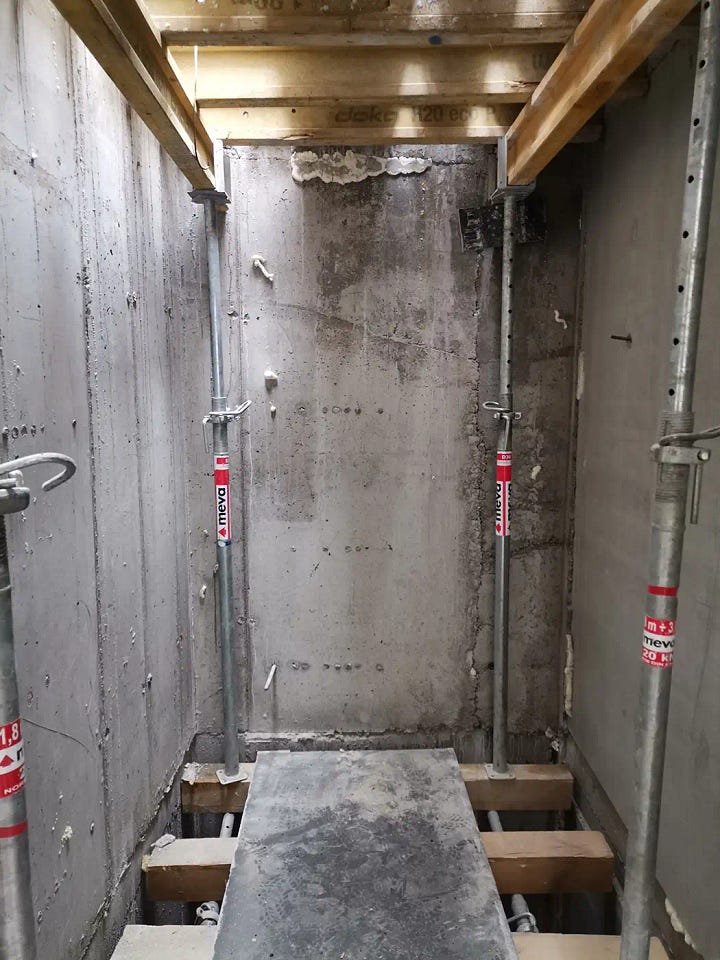

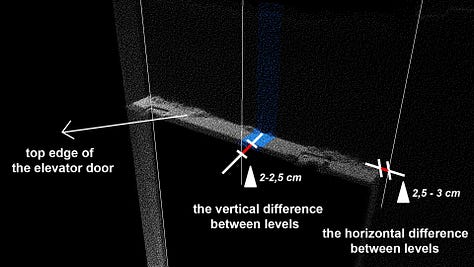

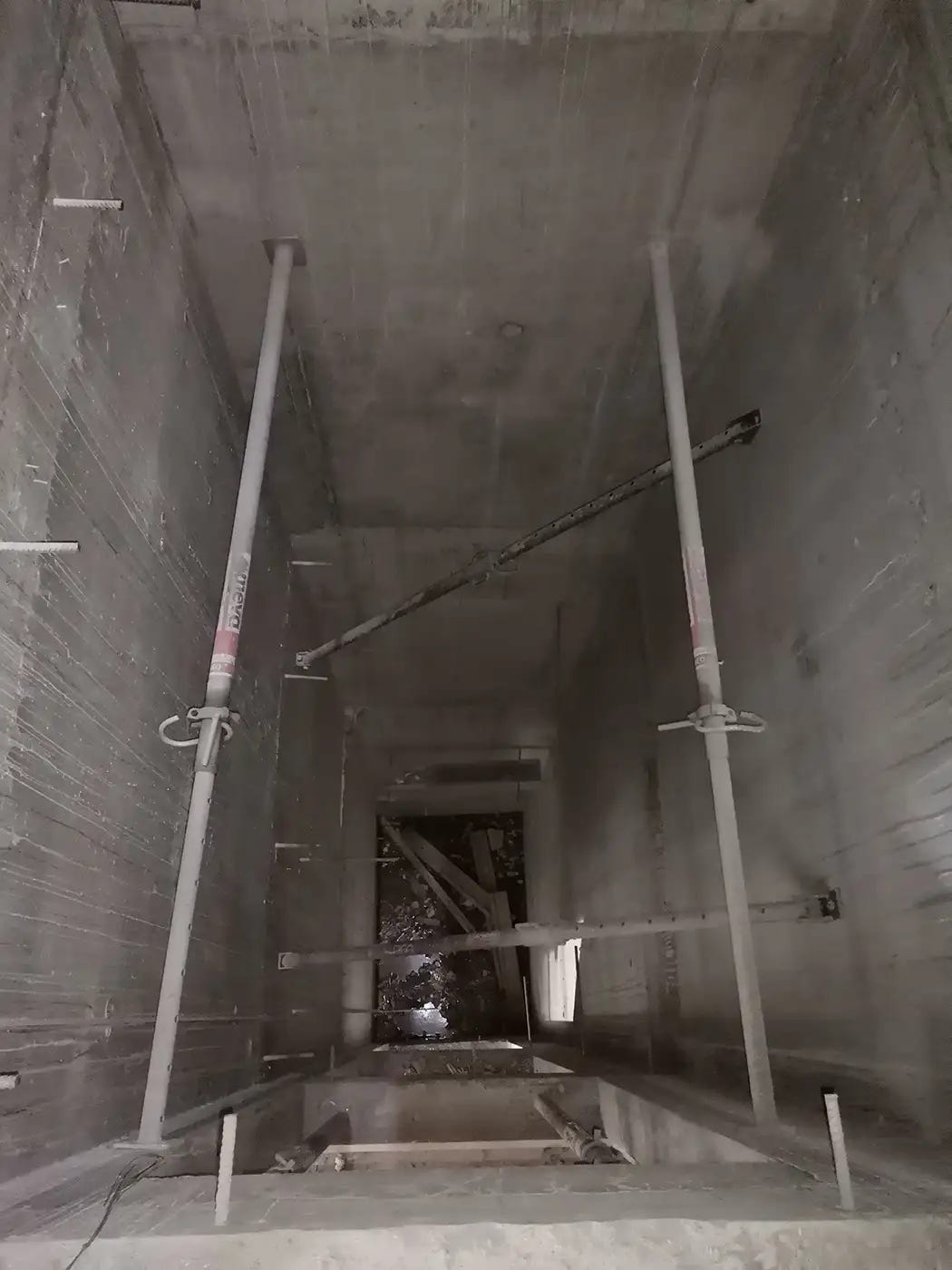

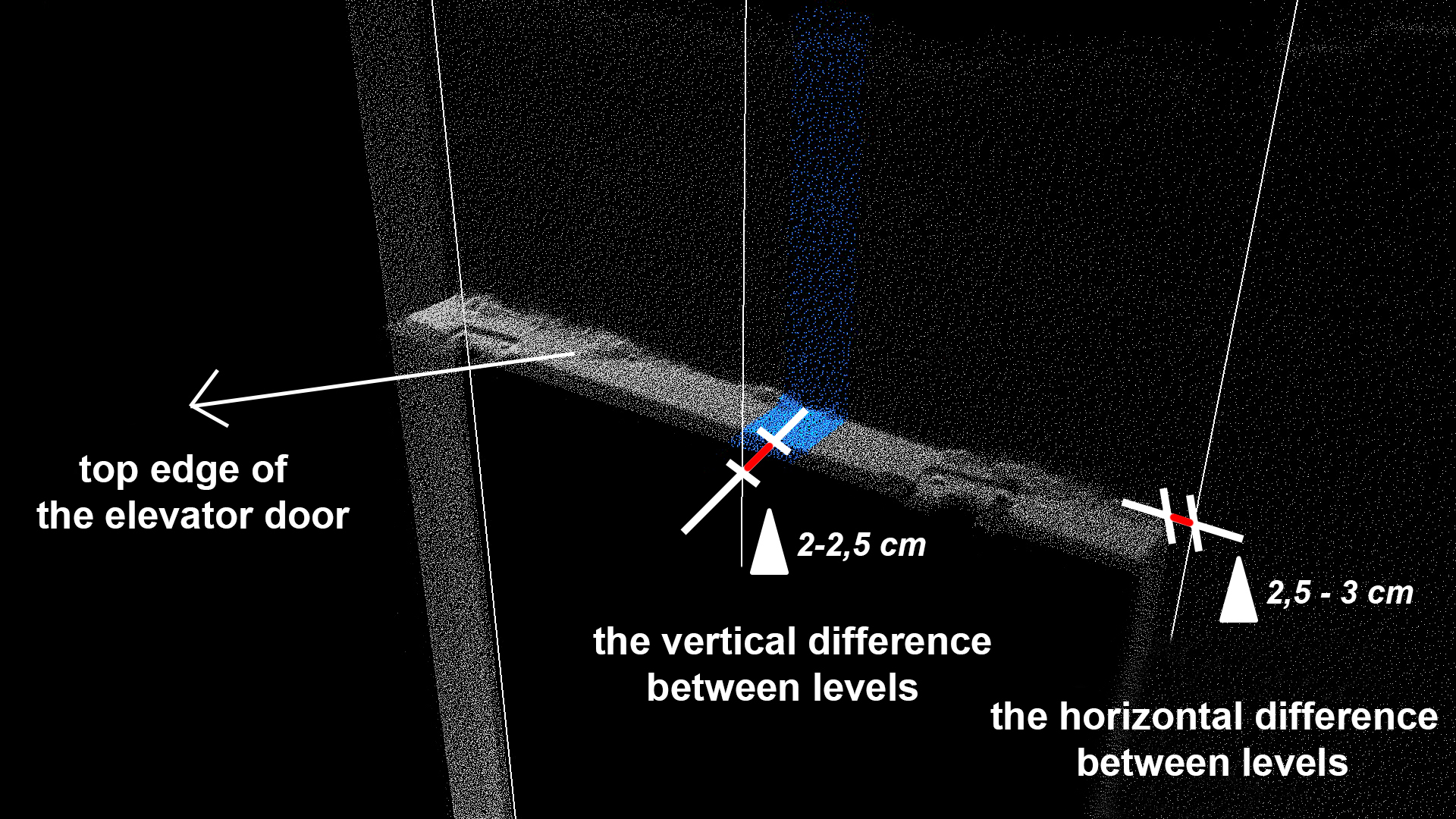

The analysis identified:
horizontal deviations,
vertical deviations,
dimensional inconsistencies,
geometric twisting through the shaft,
and areas with insufficient installation clearance.
The measurements shown in the analysis represent the actual deviations identified from the survey data and provided a quantitative basis for determining where corrective work was required.
FROM SCAN DATA TO ENGINEERING EVIDENCE
Capturing the shaft was only the first stage of the project.
The critical task was converting the registered point cloud into information that could explain why the elevator could not be installed and where the completed structure differed from the required geometry.
By analysing the spatial relationship between the shaft surfaces, the geometric distortion could be located and documented rather than relying on assumptions or individual manual measurements.
The resulting deviation information gave the construction team a spatially referenced basis for planning the required structural corrections.
THE OUTCOME
The analysis confirmed that the completed elevator shaft deviated from the intended geometry and identified the areas responsible for the installation conflict.
Based on the point cloud data and deviation report, sections of the shaft were locally removed to create the clearance required for the elevator installation.
Following the corrective construction work, the elevator was successfully installed and commissioned.
The elevator is now in operation.
This provided a clear end-to-end result:
physical installation problem → 3D survey → geometric analysis → corrective construction → successful installation
DELIVERABLES
The project delivered two primary technical outputs:
Registered Point Cloud Dataset — a complete spatial representation of the surveyed elevator shaft.
Geometric Deviation Report — documented measurements identifying the actual geometric differences within the completed structure.
These outputs provided both the underlying spatial dataset and the engineering evidence required to support corrective work.
WHAT THIS PROJECT DEMONSTRATES
This project demonstrates how terrestrial laser scanning can turn a construction problem into measurable engineering evidence.
Rather than relying on isolated manual measurements, the registered point cloud provided a complete representation of the as-built shaft geometry. This made it possible to locate the deviations responsible for the installation conflict and support targeted corrective work.
The same approach can support construction verification, structural QA and other projects where complex as-built geometry must be understood before installation or corrective work.
TECHNOLOGY USED
Hardware:
RIEGL VZ-400i
Software
RiSCAN PRO
Methods
Terrestrial Laser Scanning (TLS) · Point Cloud Registration · Point Cloud Processing · Geometric Deviation Analysis · As-built Geometry Verification · Construction QA
Survey equipment provided within the Connect-King Kft. project collaboration.
